RackMount Kit for Sophos SG/XG 85, 105 & 115
RM-SR-T1:
Sorry, this product is no longer available, Contact us for a replacement solution.

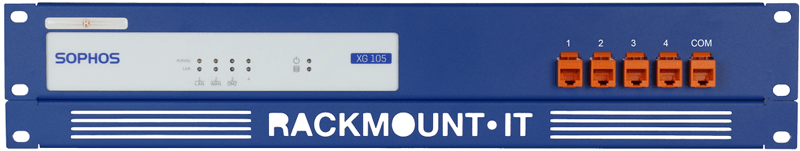

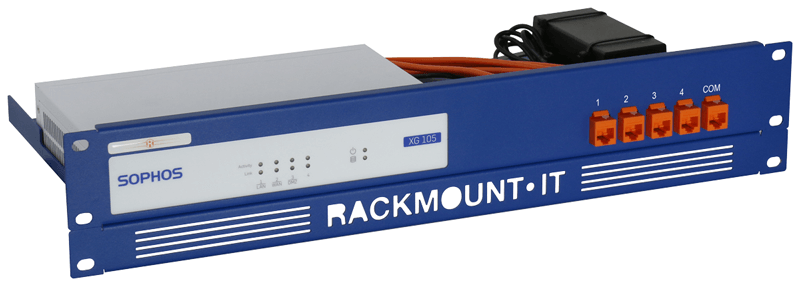

The RM-SR-T1 gives you the ability to mount your Sophos desktop firewalls in a 19" rack. The rack is tailored specifically for the listed models to guarantee a perfect fit. In addition, the connections are brought to the front for easy access. The power supply is fixed to prevent an accidental loss of power.

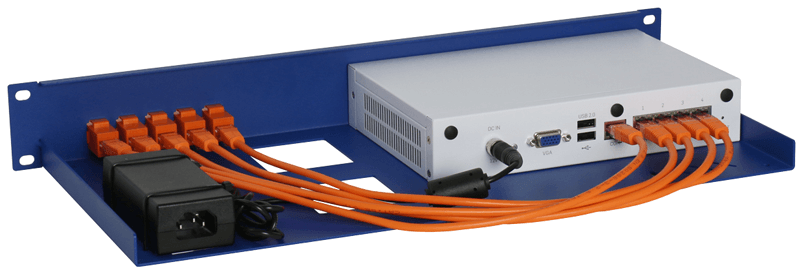

Assembly will take about 5 minutes. Simply slide your Sophos device in the kit, place the retainers, connect the supplied cables to the keystones and fix the power supply to the rack.
Please note: This model is not compatible with the new Sophos Rev. 3 firewalls. Check out the RM-SR-T4 (XG 85) and RM-SR-T5 (XG 105 & 115) for the Rev. 3 versions of the firewall.
Image Views:
| Specifications | |
|---|---|
| Manufacturer | Rackmount.IT |
| Model | Sophos |
| For Use |
|
| Color | RAL 5010 Gentian Blue |
| Height | 1.3U 2U with the supplied front plate |
| Dimensions (height x width x depth) |
2.32 in. x 18.98 in. x 8.54 in. (59 x 482 x 217 mm) |
| Number of connections brought to the front | 5 |
| Console port to the front | Yes |
| Cables | 5x 0.5m cables |
| Couplers | 5x RJ45 couplers |
| What's in the box |
|
Download the RM-SR-T1 Datasheet (PDF).
